ST Series

Universal LED tower light with a wide selection of audio and visual signaling options according to the
application environment and intended use

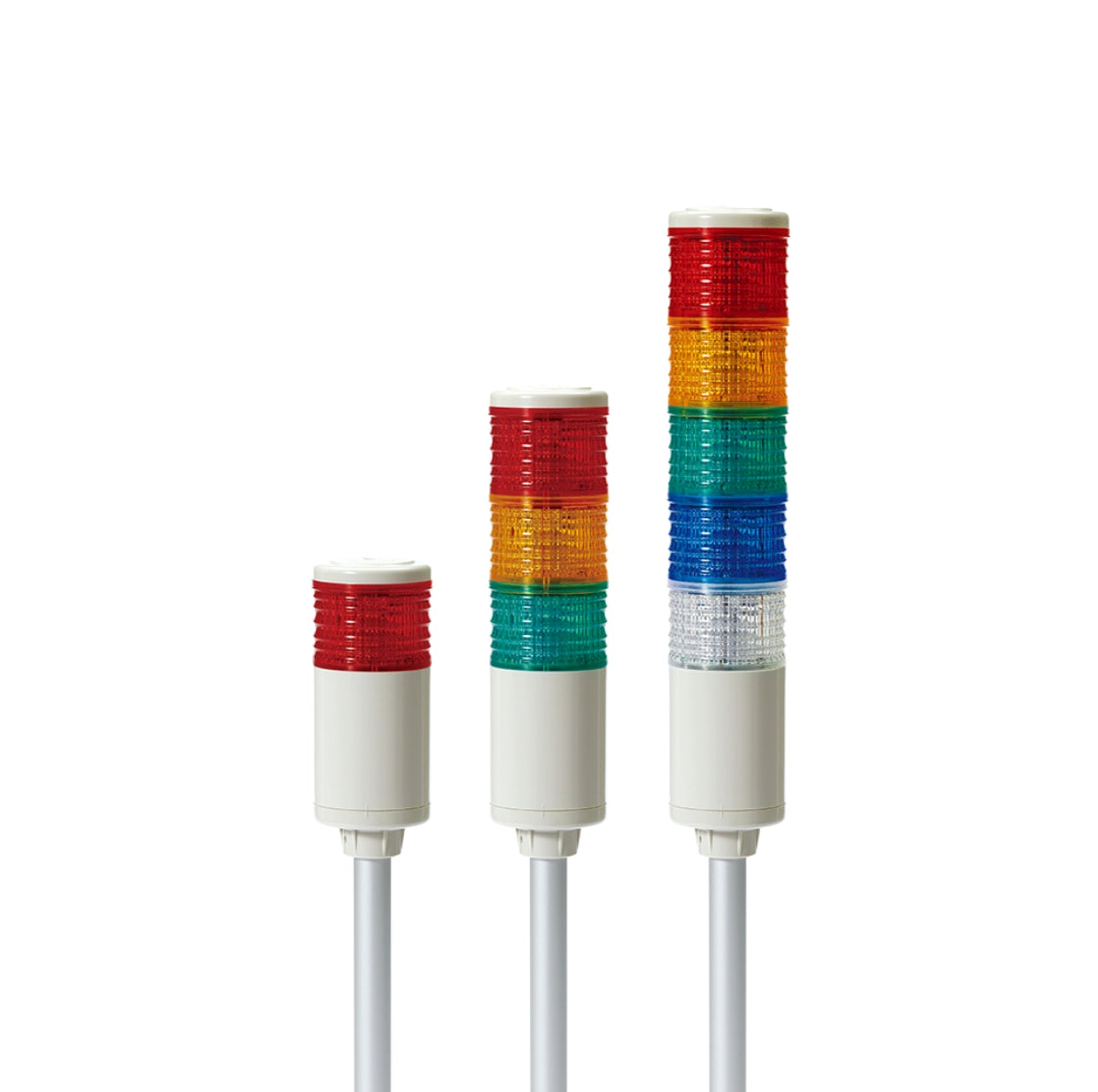

ST56EL

Ø56mm Pole Mount Type
LED Steady/Flashing Tower Lights
Max.90dB

• Product Feature

  Built-in buzzer type (Max. 90dB at 1m), Built-in alarm type (Max. 85dB at 1m)

• Voltage

  DC:12V,24V│AC:110V,220V,12V,24V

• Dimension

  Diameter : Ø56mm │Height : │341-566

• Materials

  Lens-AS │Housing-ABS │Pole-Al

• Protection rating

  IP44 (Standard)│IP23 (Buzzer type)

• Certificate



Product Feature

• LED steady/flashing tower lights
• Long product lifetime of over 20,000hours with the application of a high intensity LED light source
• Can select from size selections of Ø45mm, Ø56mm, and Ø80mm to fit your sophisticated application needs
• A variety of Mounting bracket selections for the pole mount type to fit your location and mounting needs
• Built-in alarm available: Can select from 5 warning sounds, 5 alarms, 5 melodies to fit your application needs
• Customized color arrangement available (LED light distribution system and lens is integrated into a combined structure)
• Standard model and built-in buzzer model can be used by selecting the specifications suitable for the operating environment
• Flashing rate : 60-80 flashes/min
• 24VDC UL listed model is optionally provided
• Compliant with RoHS directive

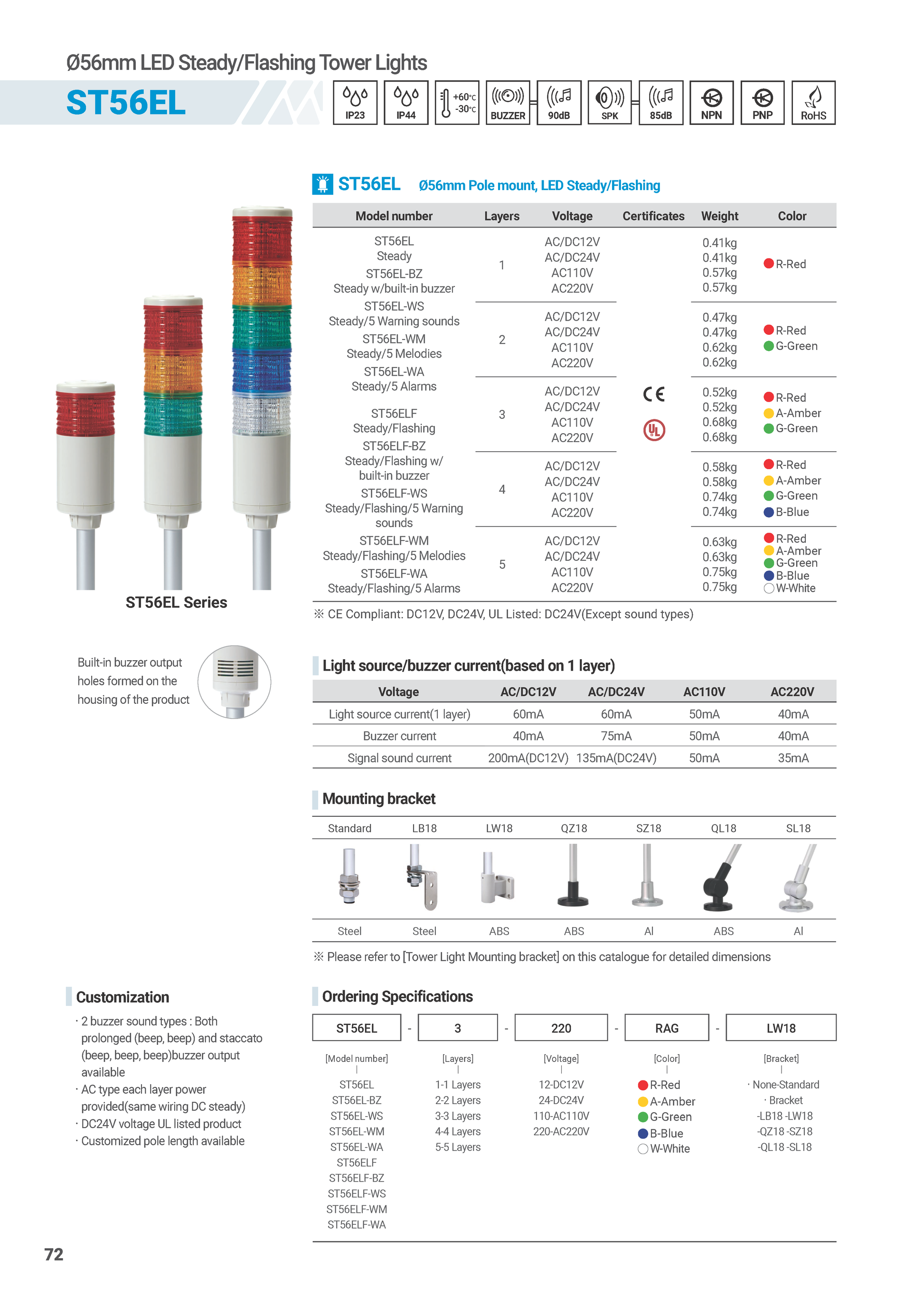

ST56EL Steady ST56EL-BZ Steady w/built-in buzzer ST56EL-WS Steady/5 Warning sounds ST56EL-WM Steady/5 Melodies ST56EL-WA Steady/5 Alarms ST56ELF Steady/Flashing ST56ELF-BZ Steady/Flashing w/built-in buzzer ST56ELF-WS Steady/Flashing/5 Warning sounds ST56ELF-WM Steady/Flashing/5 Melodies ST56ELF-WA Steady/Flashing/5 Alarms	1	AC/DC12V AC/DC24V AC110V AC220V		0.41kg 0.41kg 0.57kg 0.57kg	R-Red
	2	AC/DC12V AC/DC24V AC110V AC220V		0.47kg 0.47kg 0.62kg 0.62kg	R-Red  G-Green
	3	AC/DC12V AC/DC24V AC110V AC220V		0.52kg 0.52kg 0.68kg 0.68kg	R-Red  A-Amber  G-Green
	4	AC/DC12V AC/DC24V AC110V AC220V		0.58kg 0.58kg 0.74kg 0.74kg	R-Red  A-Amber  G-Green  B-Blue
	5	AC/DC12V AC/DC24V AC110V AC220V		0.63kg 0.63kg 0.75kg 0.75kg	R-Red  A-Amber  G-Green  B-Blue  W-White
