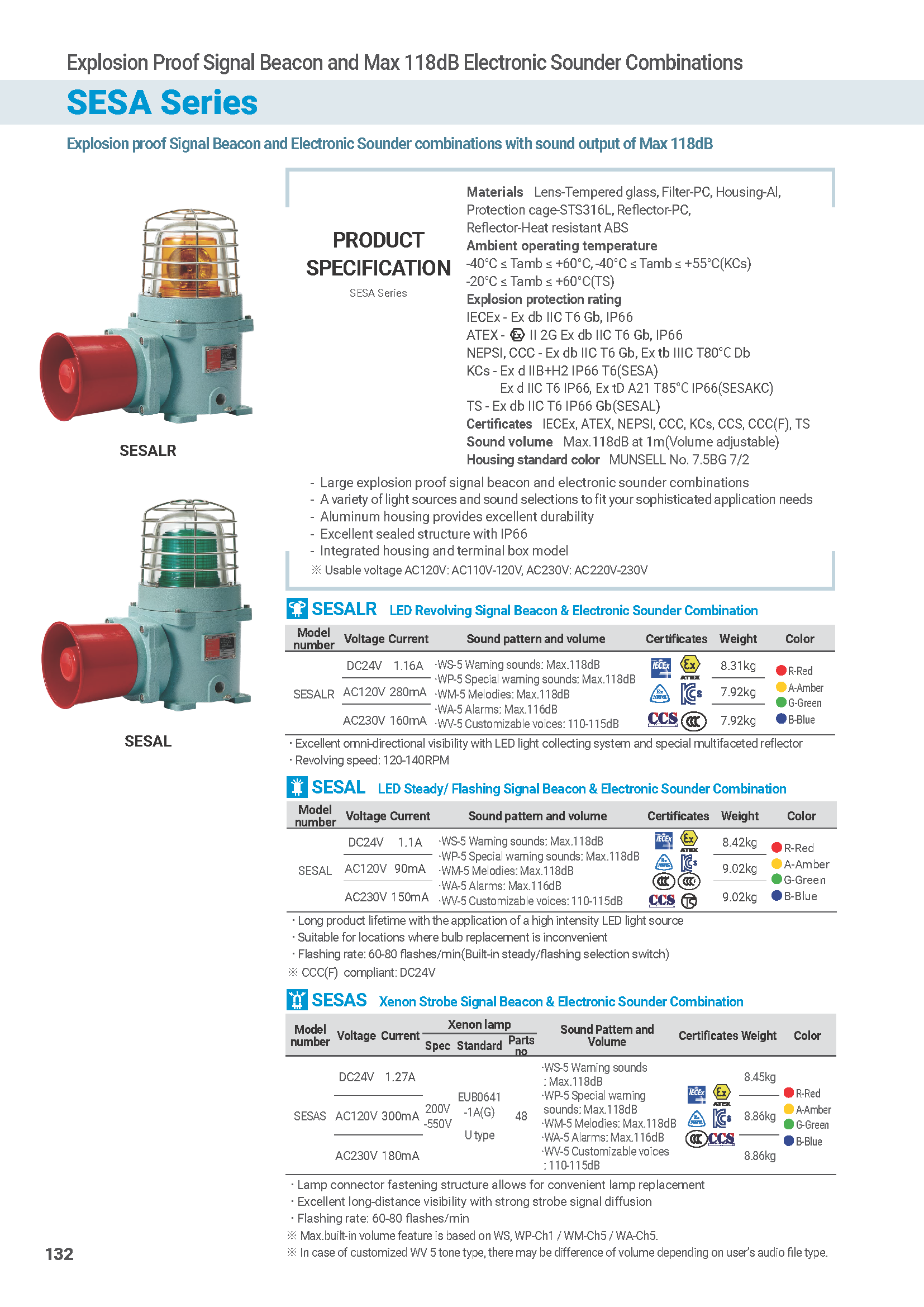

Explosion Proof Beacon Sounders LED Revolving SESA Series Flashing Warning Strobe 118dB Electronic Sounder

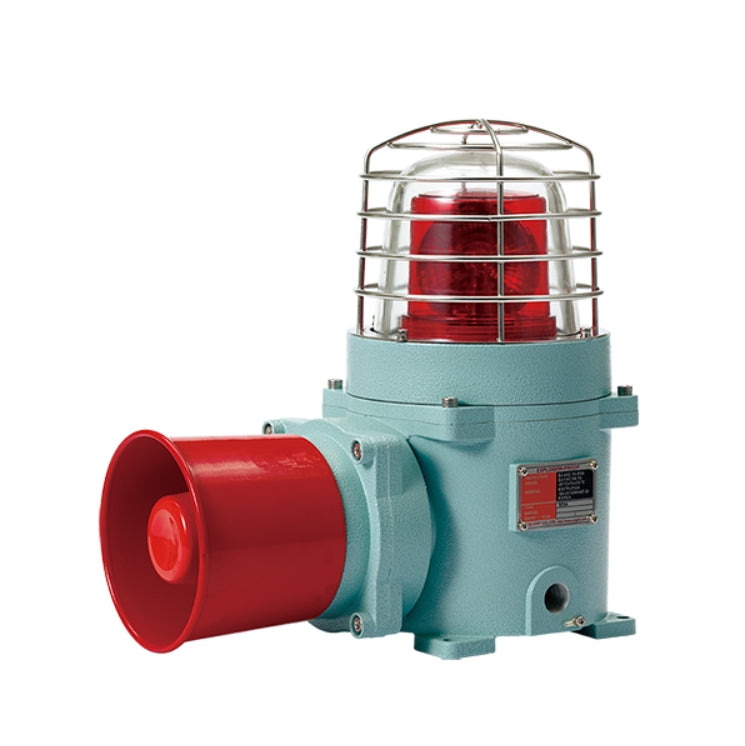

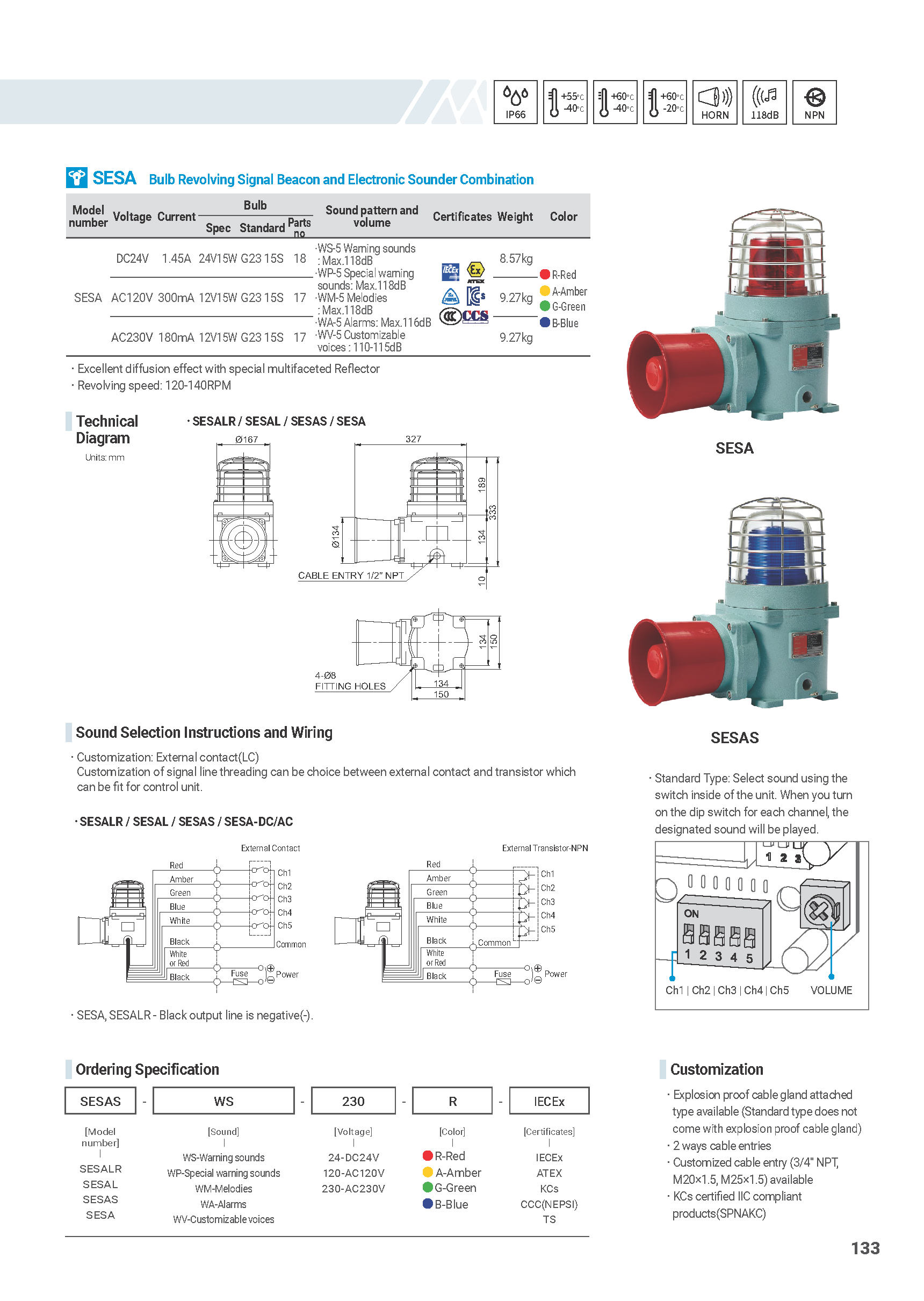

SESA
Revolving Signal Beacon & Electronic Sounder Combination Max.118dB

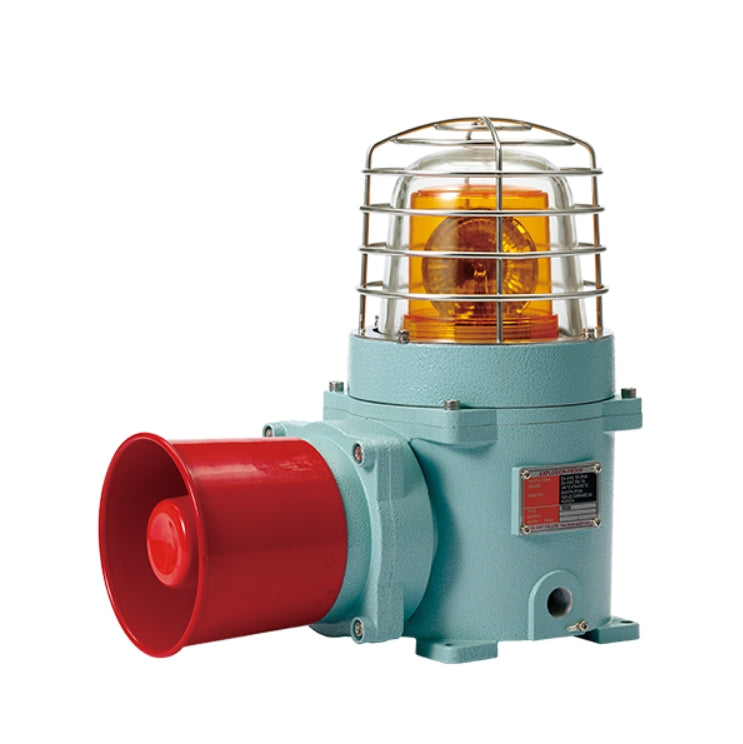

SESALR
LED Revolving Signal Beacon & Electronic Sounder Combination Max.118dB
SESAL
LED Steady/ Flashing Signal Beacon & Electronic Sounder Combination Max.118dB
SESAS
Xenon Strobe Signal Beacon & Electronic Sounder Combination Max.118d

• Materials Lens-Tempered glass, Filter-PC, Housing-Al,
  Protection cage-STS316L, Reflector-PC,
  Reflector-Heat resistant ABS
  Ambient operating temperature
  -40°C ≤ Tamb ≤ +60°C, -40°C ≤ Tamb ≤ +55°C(KCs)
  -20°C ≤ Tamb ≤ +60°C(TS)
  Explosion protection rating
  IECEx - Ex db IIC T6 Gb, IP66
  ATEX - II 2G Ex db IIC T6 Gb, IP66
  NEPSI, CCC - Ex db IIC T6 Gb, Ex tb IIIC T80℃ Db
  KCs - Ex d IIB+H2 IP66 T6(SESA)
  Ex d IIC T6 IP66, Ex tD A21 T85℃ IP66(SESAKC)
  TS - Ex db IIC T6 IP66 Gb(SESAL)
  Certificates IECEx, ATEX, NEPSI, CCC, KCs, CCS, CCC(F), TS
  Sound volume Max.118dB at 1m(Volume adjustable)
  Housing standard color MUNSELL No. 7.5BG 7/2
• Certificate



•
